Module Installation¶

This page walks through installing a module's PostgreSQL/PostGIS datamodel into a database.

1. Connect to a database¶

In the Database Connection box, select a PG service from the dropdown. The service must be defined in your pg_service.conf file.

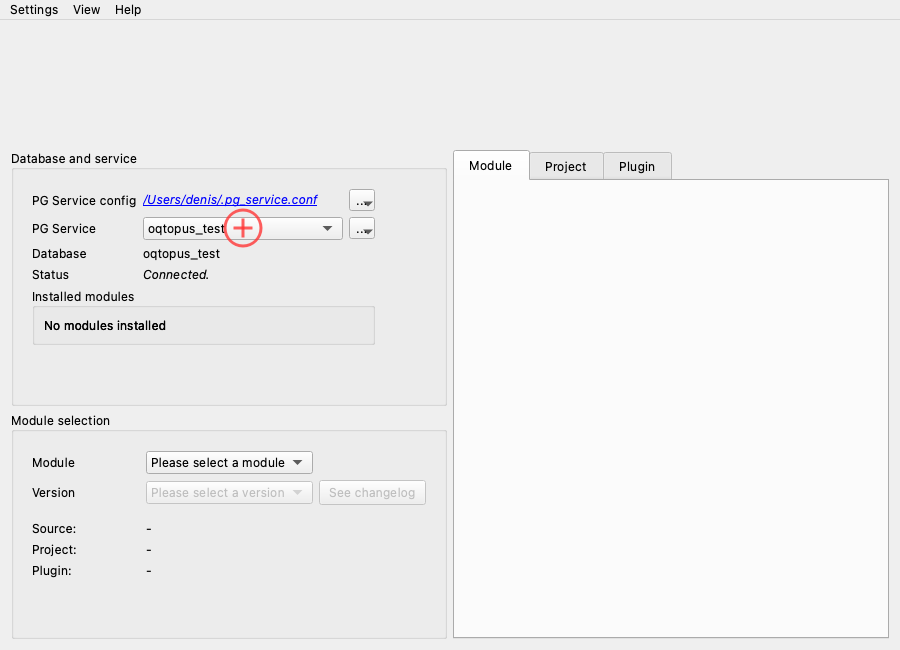

Service selected

You can also use the ⋯ menu to:

Create database — create a new empty database and add a PG service entry.
Duplicate database — clone the currently connected database.
Reload PG Service config — refresh the dropdown after editing pg_service.conf.

2. Select a module¶

In the Module Selection box, choose the module you want to install (e.g. TEKSI Wastewater). oQtopus fetches the available versions from the module's GitHub repository.

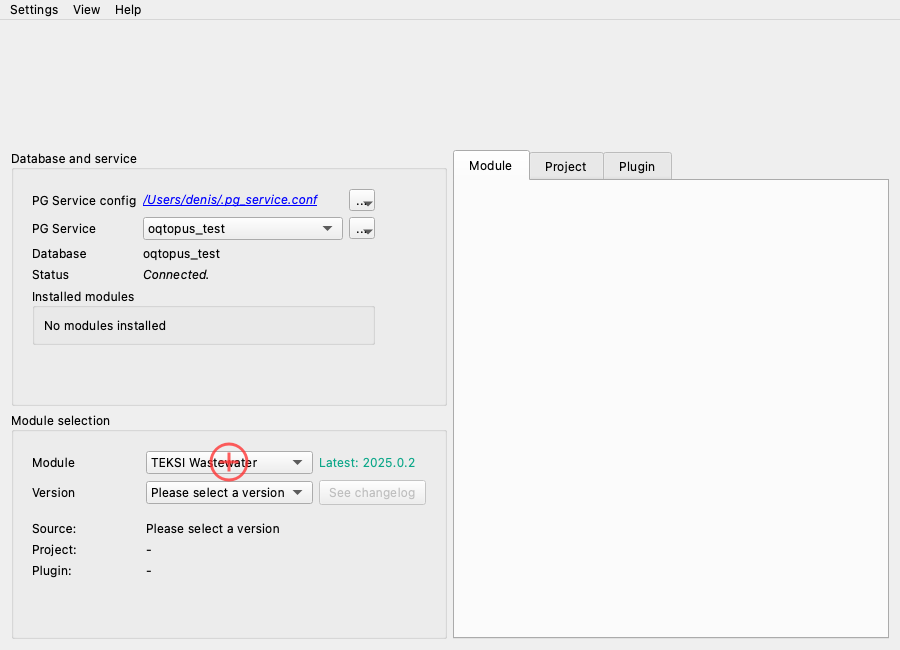

Module selected

3. Select a version¶

Pick the version you want to install from the version dropdown. oQtopus downloads and prepares the release package automatically.

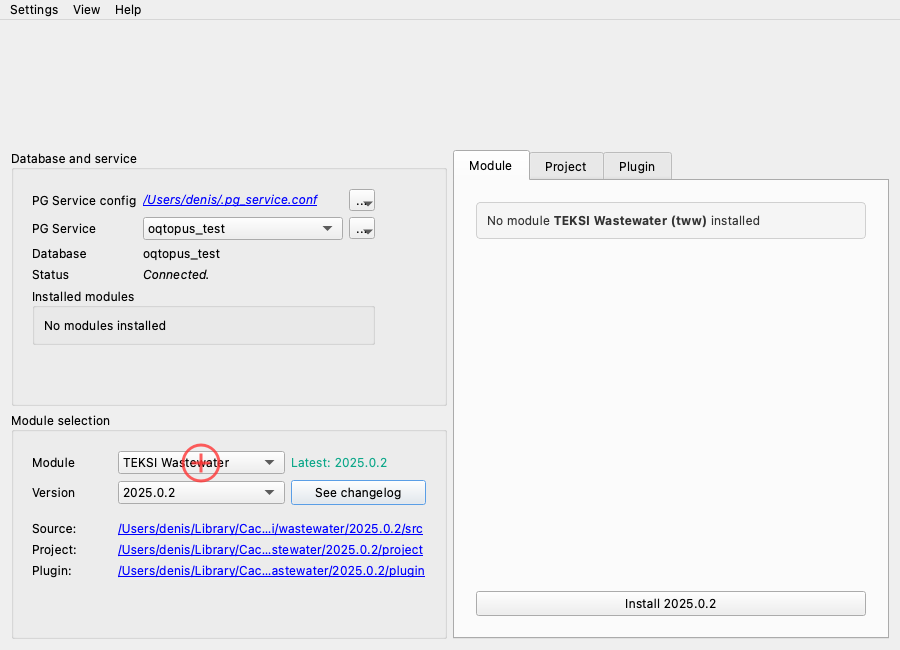

Version selected

Alternative sources

Besides official releases, you can also install from:

Local ZIP file — select Load from ZIP file in the dropdown.
Local directory — select Load from directory.
Pre-releases and development branches — select Load pre-releases and development branches to fetch additional versions including the main branch and open pull request branches.

4. Configure installation parameters¶

Click the Install button in the Module tab. The installation dialog opens:

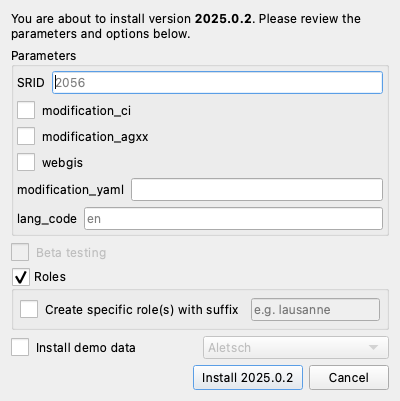

Install dialog

Here you can configure:

Roles — whether to create and grant the PostgreSQL roles defined by the module.
Demo data — optionally install a demo dataset.
Parameters — advanced installation parameters specific to the module (e.g. default SRID, language).

5. Run the installation¶

Click Install in the dialog to start the operation. A progress bar shows the installation status.

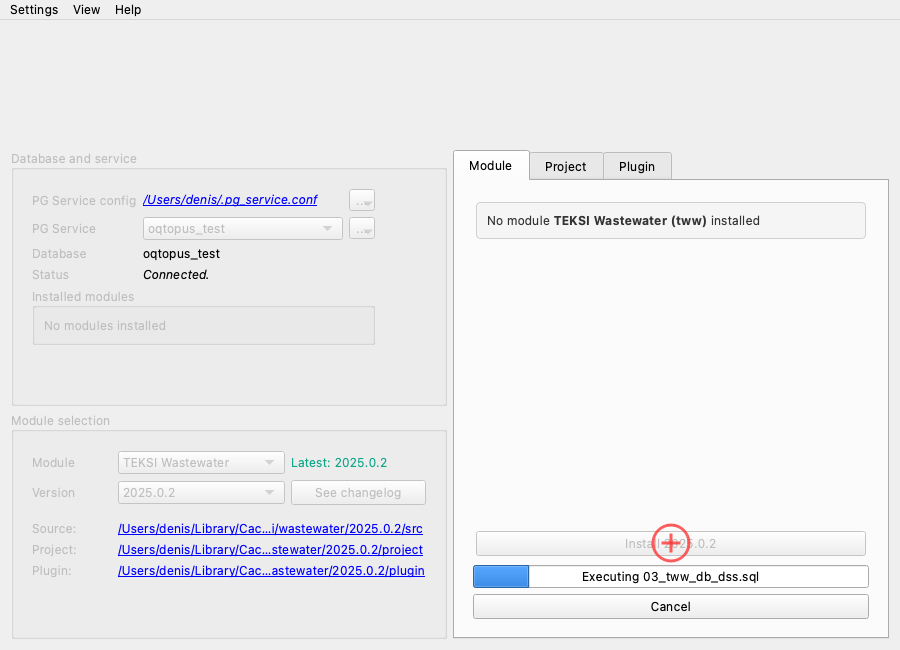

Install in progress

Once the installation is complete, a success message is displayed and the installed module appears in the Installed modules list in the Database Connection box.
