GUI

pgserviceparser ships with a graphical interface for managing PostgreSQL connection services.

Installation

Install the GUI extra:

pip install pgserviceparser[gui]

This pulls in PyQt6 as an additional dependency.

QGIS compatibility

When running inside QGIS, the bundled qgis.PyQt bindings are used automatically — no separate PyQt6 install is needed.

Launching the application

Run the console script:

pgserviceparser-gui

Or invoke the module directly:

python -m pgserviceparser.gui

Overview

The main window displays two panels:

  • Service list (left) — all services found in the active pg_service.conf file.
  • Settings editor (right) — key/value pairs for the selected service.

A message bar at the top displays success, warning, and error notifications. Success messages auto-dismiss after 5 seconds, while warnings and errors require manual dismissal.

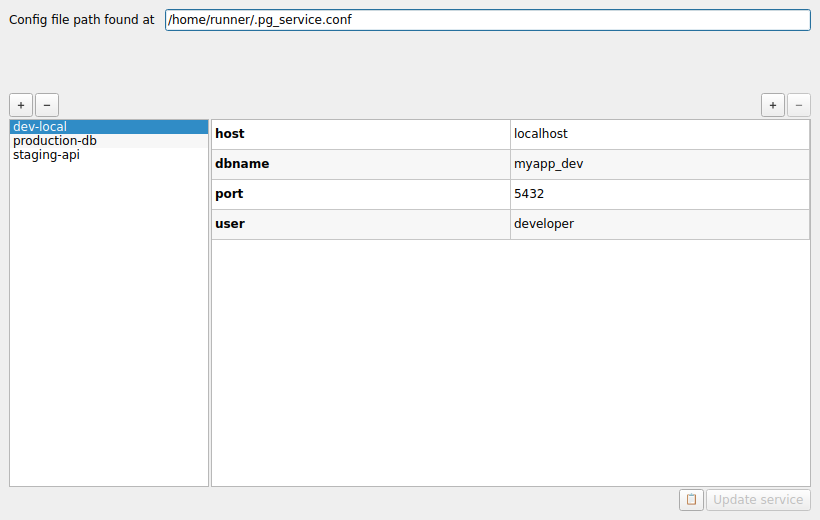

Overview

Managing services

Click the + button to create a new service, or the − button to remove the selected one(s). Right-click a service for Rename and Duplicate options.

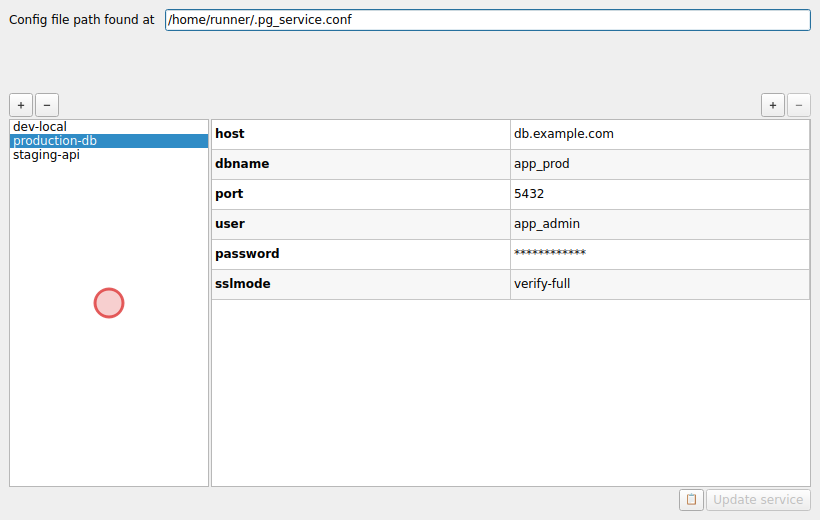

Service selected

Editing settings

Select a service to load its settings into the editor table. Double-click a value cell to edit it. Use the + / − buttons next to the table to add or remove individual settings. Press Update service to persist changes back to disk.

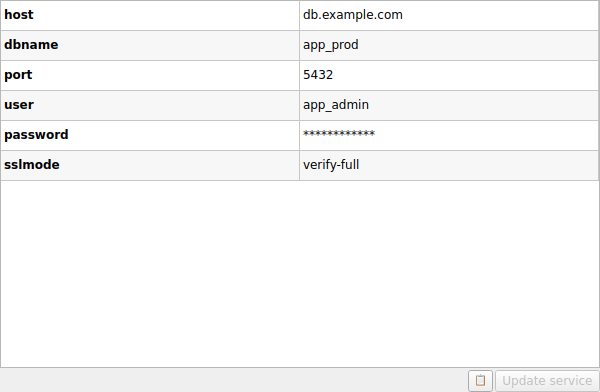

Settings editor

Passwords are masked by default and revealed only during editing.

Configuration file

The status bar at the top shows the active configuration file path. If no file is found, you can create one at the default location with a single click.
